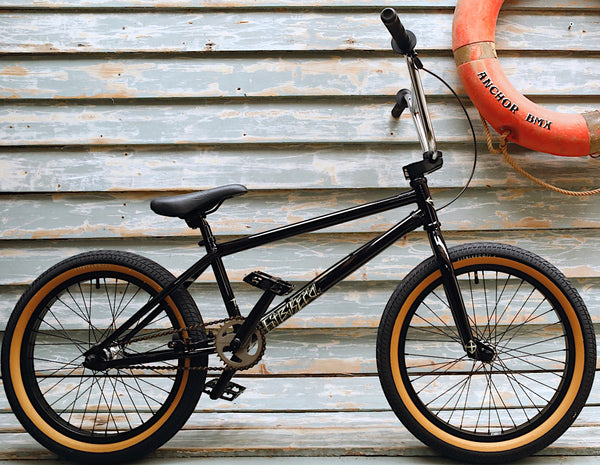

Fitbikeco's 2023 TRL bikes start with longer 21" and 21.25" top-tube trail geometry frames with chain-stay mounted brakes. Traditional 33mm offset forks pair perfectly with the stable 74.5-degree TRL head-angle.  spec'd classic 29" X  9" 11 degree back and 2 degree up 2-piece bars with FIT Long Tech flanged grips on all 4 TRL models. Other notable features on 2023 TRL's include double walled FIT OEM rear rims, female front axles, S&M Shield railed seats and 300 mm micro adjust seat posts.



• Ergonomic, aftermarket FIT alloy pedals

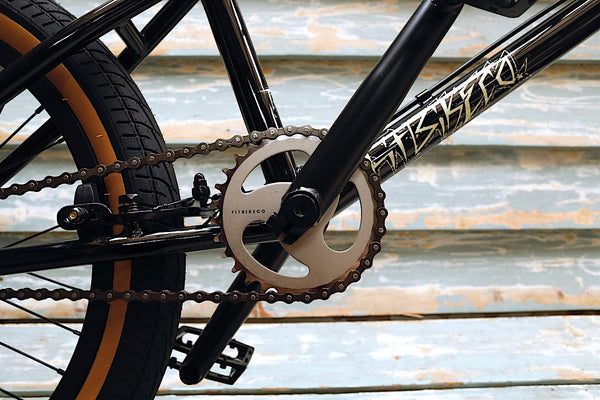

• FITSAW 30T w/10T driver and 175mm cranks

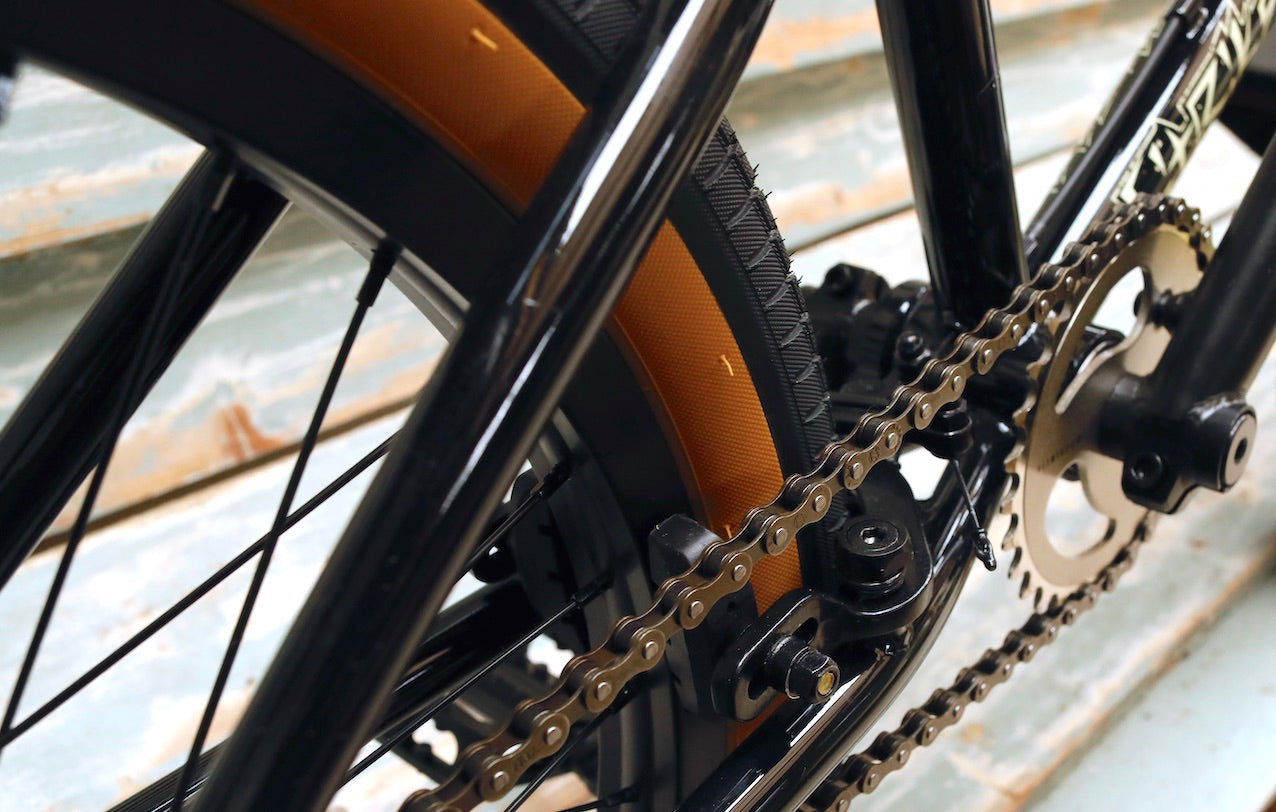

• Chain-stay mounted U-brake

• Female front axles



Frame: 21" tt (xl) cro-mo front tri

Geometry: trail w/74.5 ha

Headset: integrated

Bb: sealed mid

Bars: 2-piece 9" x 29"

Fork: tapered w/33mm offset

Stem: fit top load

Grips: fit long tech w/flange

Seat: s&m shield railed

Seat post: 300 mm micro adjust

Cranks: tubular cro-mo 175mm

Sprocket: fitsaw 30t

Pedals: fit alloy

Front wheel: fit s1w w/sealed female axle

Rear wheel: fit oem double wall w/sealed 10t cassette

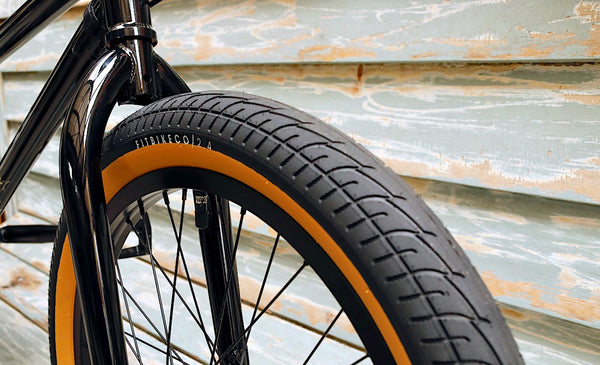

Tires: fit oem 2.4"

Brakes: new u-brake w/more tire clearance & softer pull springs

Weight: 12.2 kg
