Bringing WETHEPEOPLE quality to a lower price point for 2021 is our entry-level shredding machine that is available in five incredible colourways and two toptube options. The Nova features a super short 12.75” oval chainstay and responsive 26mm offset fork allowing it to not only feel just like the bikes our PRO team ride, but also make it much easier to progress your riding even further.
SPECIFICATIONS

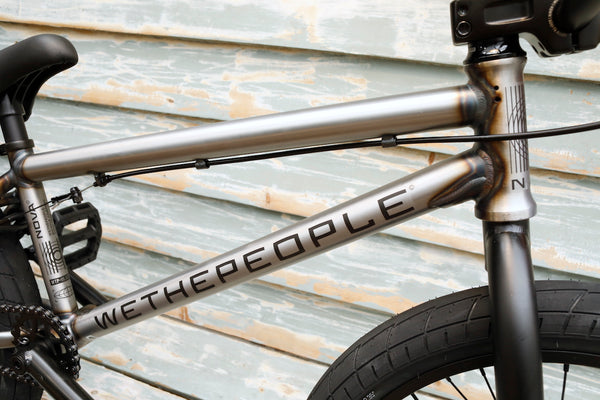

Frame: WETHEPEOPLE "NOVA" frame, 1020 hi-ten
Fork: SALT “AM 20” fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset
Bars: SALT "NOVA" bar, 1020 hi-ten
Grips: SALT "EX" 154mm, flangeless grips

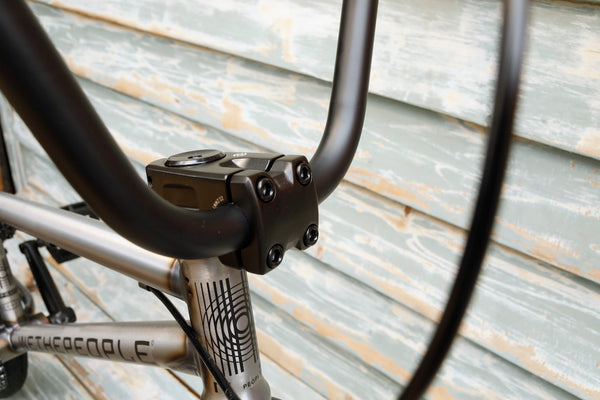

Stem: SALT "PRO" front loading stem, 50mm reach
Headset: SALT “PRO" int. headset, sealed bearing
Gyro: holes for removable gyro tabs

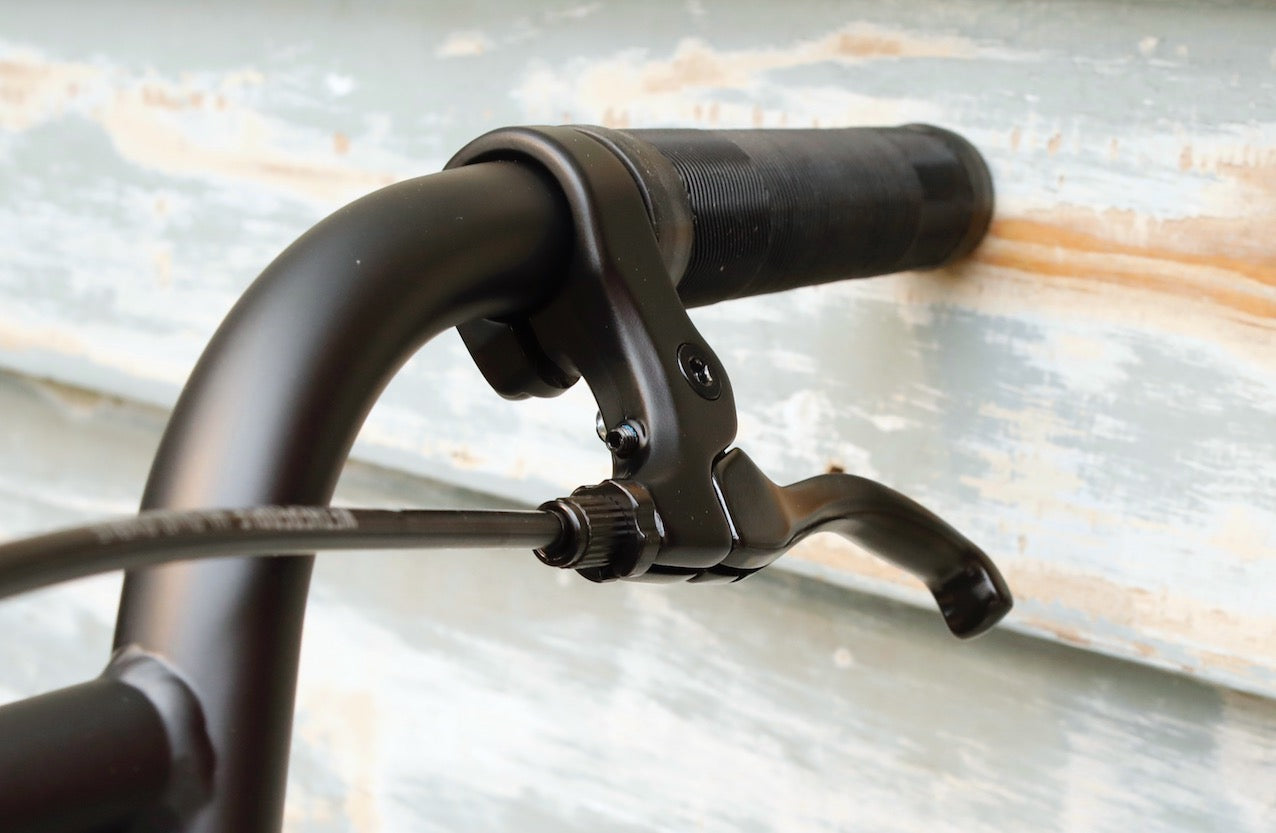

Lever: SALT “AM” alloy brake lever

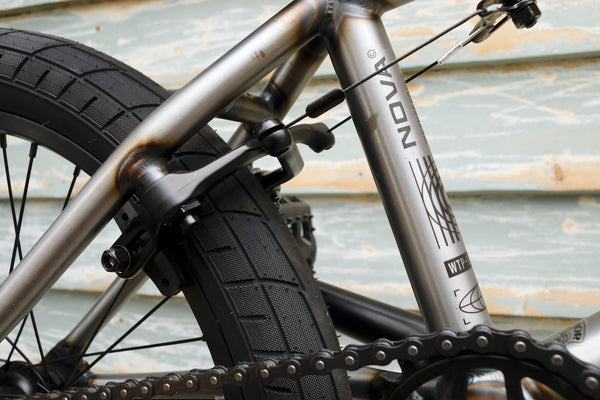

Brakes: SALTPLUS "GEO XL" alloy u-brake-rear
Cranks: SALT “ROOKIE” tubular 3pc crank crmo 165mm, 8 Spline
BB: SALT “MID” 19mm, press fit, sealed bearing

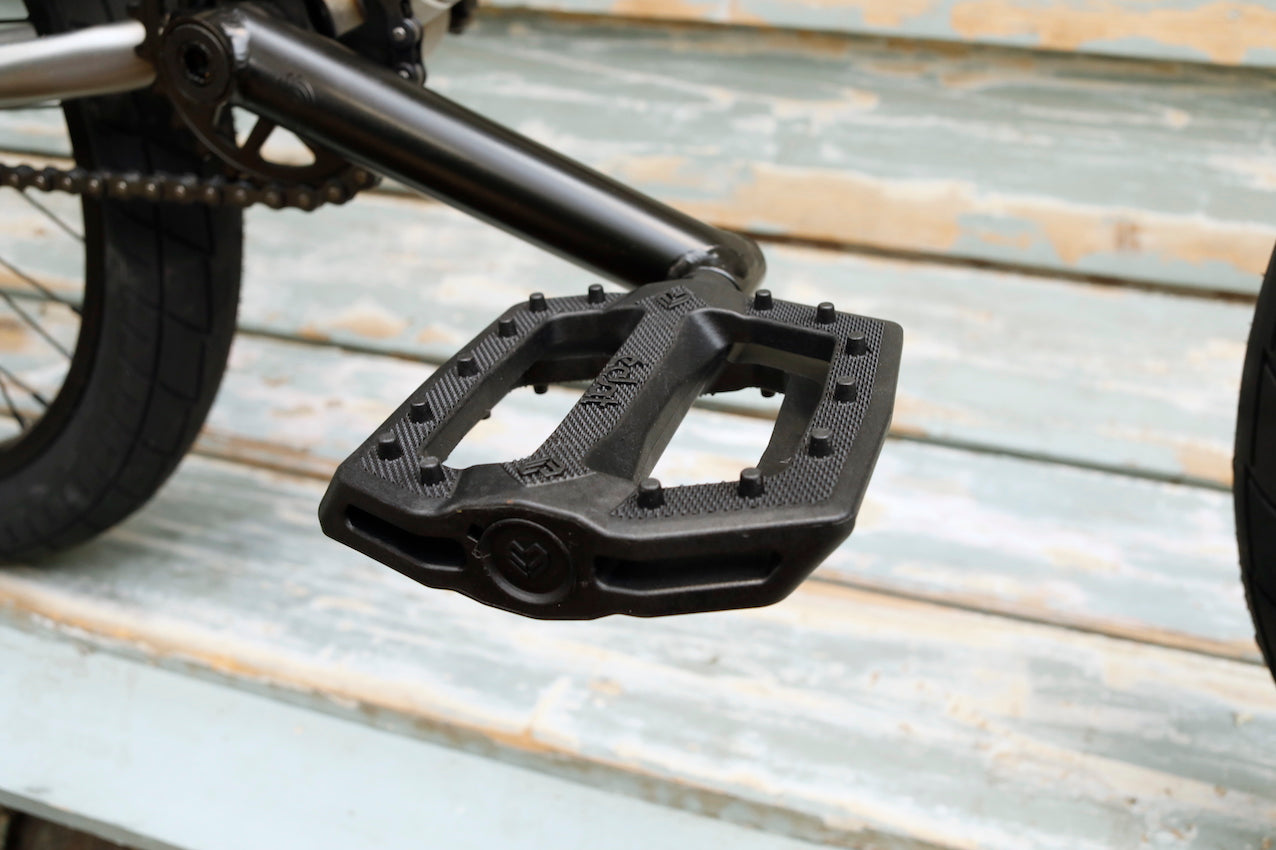

Pedals: ÉCLAT “Slash” nylon/fiberglass pedals
Chain: SALT “AM” chain, Z1 type

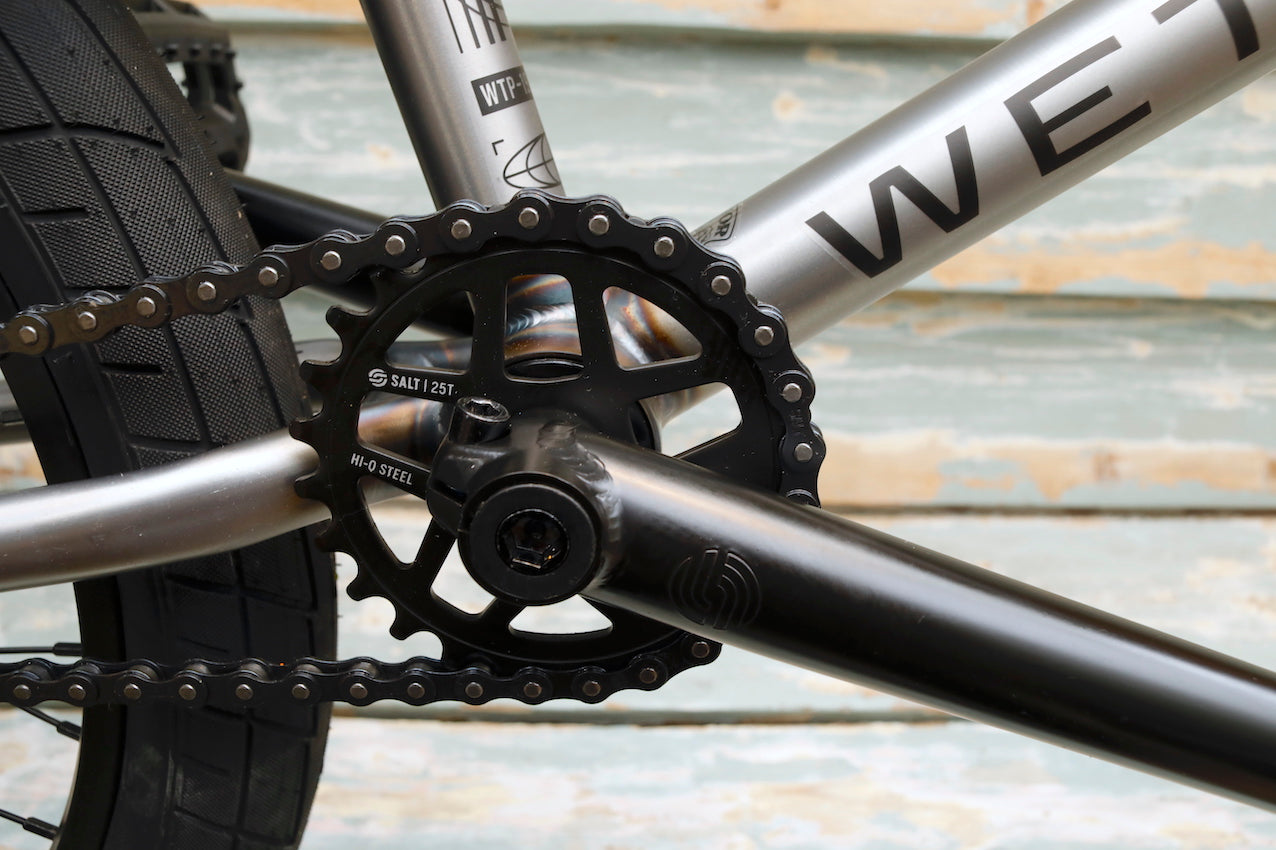

Sprocket SALT “GATEWAY” steel 25t sprocket
Driver: 9t, 1pc cassette driver, loose ball bearing

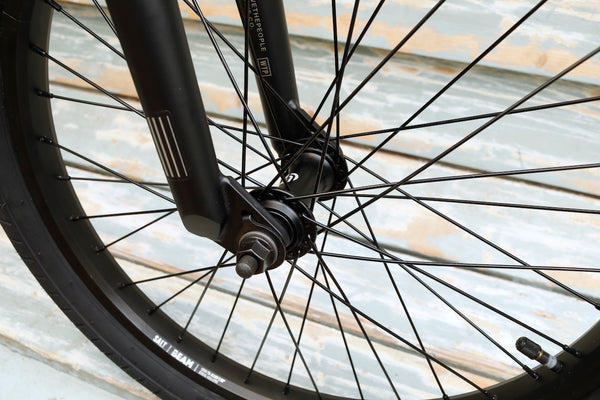

Front Hub: SALT ”NOVA” alloy hub, loose ball 3/8"s axle, 36h

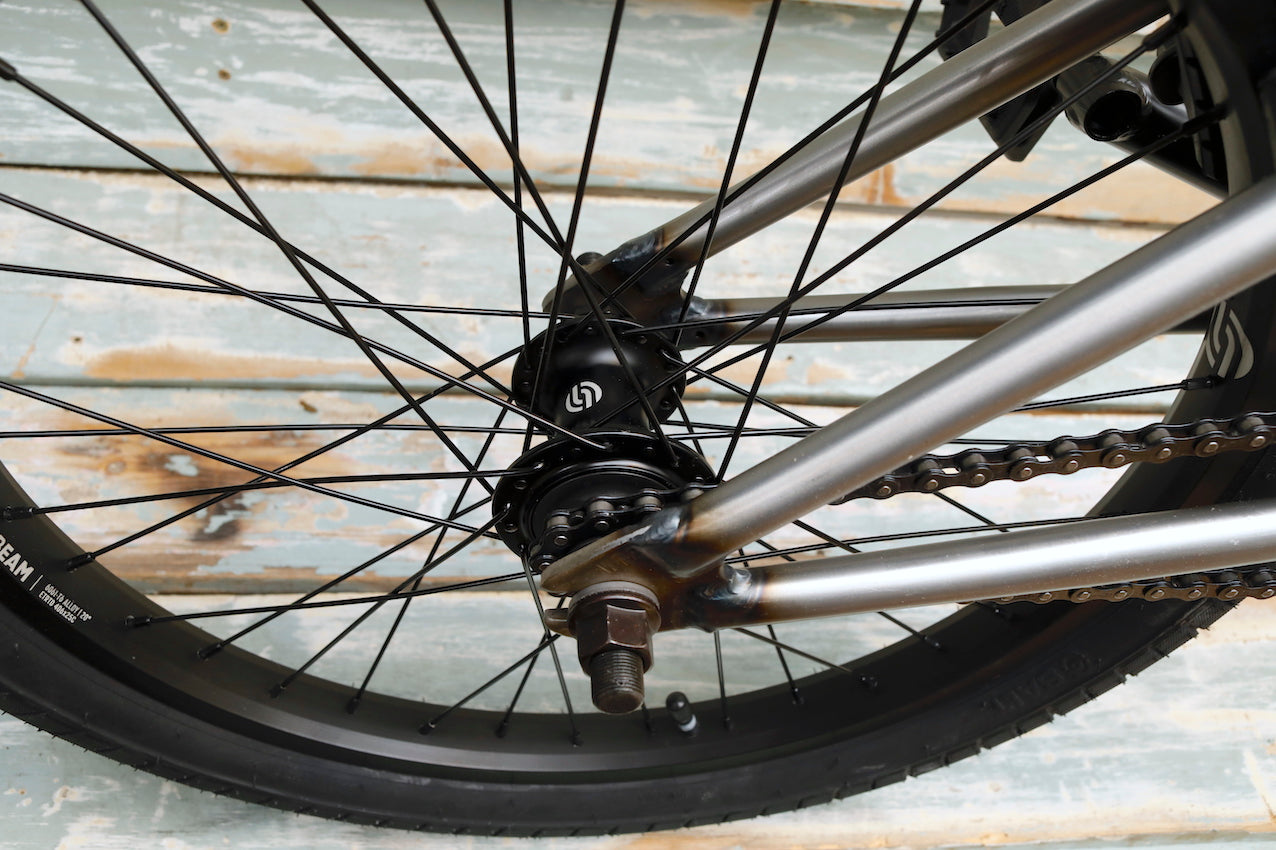

Rear Hub: SALT “NOVA" cassette hub, semi sealed, 9t, 14mm axle, 36h
Hubguards: -
Front Rim: SALT “BEAM” rim, single wall, 36h
Rear Rim: SALT “BEAM” rim, single wall, 36h

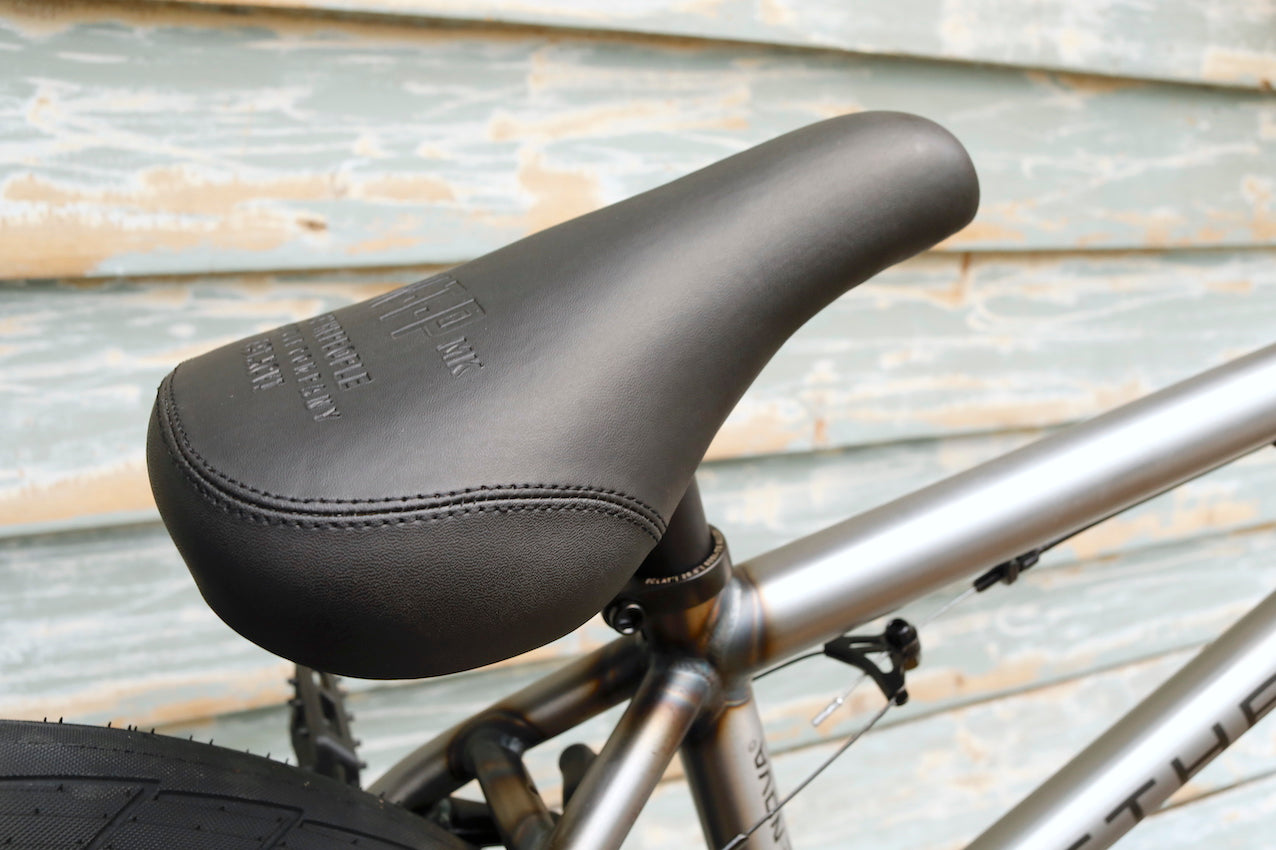

Seat: WETHEPEOPLE “NOVA” mid padded combo seat
Seat Post: -
Seat Clamp: ÉCLAT “PURE” 6061-T6 forged alloy seat clamp

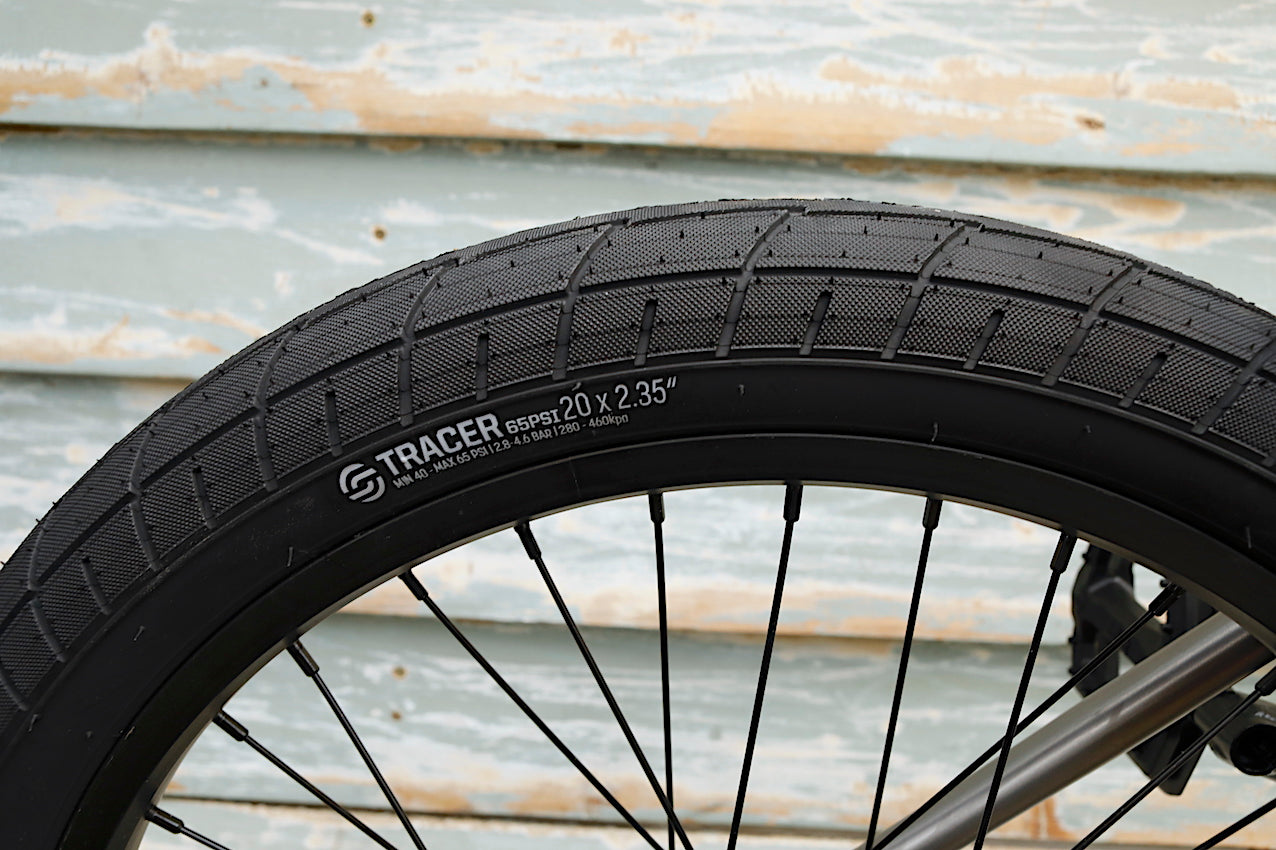

Tires: SALT “TRACER” tires 2.35" front & rear
Pegs: -
Weight: 11.92kg / 26.29lbs
FRAME GEOMETRY
A: Top Tube Length: 20” or 20.5”
B: Chain Stay Length: 12.75”
C: Head Tube Angle: 75°
D: Seat Tube Angle: 71.5°
E: Bottom Bracket Height: 11.75”
F: Stand Over Height: 8.38”
G: Bar Rise: 8.85“
H: Bar Width: 29”
I: Bar Back Sweep: 11°
J: Bar Up Sweep: 2°
NOTE:
Anchor BMX recommends that all BMX Bikes be assembled by a qualified mechanic to prevent Improper wear.
All complete bikes are dissembled and boxed for shipping when ordered online.
Click & collect bike go out built unless requested otherwise.
Feel free to contact us with any questions or to arrange a test ride.
